QUOTATION FROM AQUAFILTER







 Details of 1000 LPH RO Plant

AQUAFILTER RO SYSTEMS

Phone: 08604158000, 08604558300

Mail: aquafilter.india@gmail.com

Visit us at www.aquafilter.co.in





TECHNICAL DETAILS

Designed Raw Water Analysis

Total Dissolved Solids : 1500 ppm [Max]

TREATED WATER PARAMETERS [EX-RO PLANT]

TDS mg/l : < 75 ppm

pH : 5.5 – 6.5





LIMITING CONDITIONS

OF THE PLANT:

  1. OXIDISING ELEMENTS : NIL
  2. IRON : NIL
  3. OIL & GREASE : NIL
  4. WATER SOURCE : BOREWELL
  5. pH : 4 – 11
  6. CHLORINE : NIL
  7. SDI : 3 (Max)





DESIGN PARAMTERS

  1. FEED FLOW : 20000 LPH
  2. PERMEATE FLOW : 10000 LPH
  3. MAXIMUM INLET TDS : 1500 ppm
  4. PERMEATE TDS : < 25 ppm
  5. RECOVERY : 95 %
  6. INLET PRESSURE : 3.0 Kgs/cm2
  7. HP MOTOR RATING : 5.0 HP [8.18 Kw]
  8. POWER : 1-Phase, 220 V AC

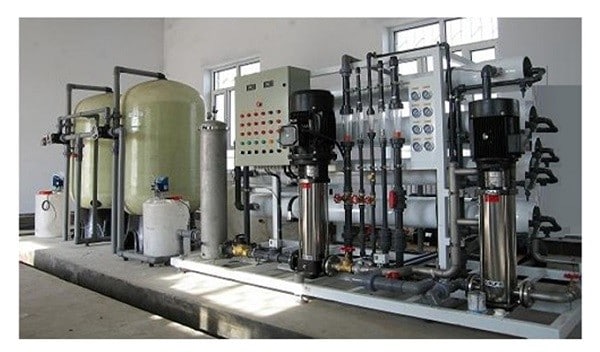

10000 Lph Ro Plant



Description Features

Technology : Membrane Based, (Size: 8040)
Electricity : 6KW/440v
Filtration : Suspended Solids, Chemical Impurities, Bacteria like Cryptosporidium, Pseudomonas, and Pathogens e-coli.
Pre Filtration : Sand Filter, Activated Carbon Filter, Micron Filter-5 &10
Post Filtration : Ozonator / UV (Optinal)
Design to Work : TDS up to 4000 ppm, Hardness 1000 mg/I
Operating Mode : Automatic + Manual

10000 Lph Ro Plant
Monitoring Accessories : MMIC Panel, Pressure Gauges, Flow Meters etc.
