Description

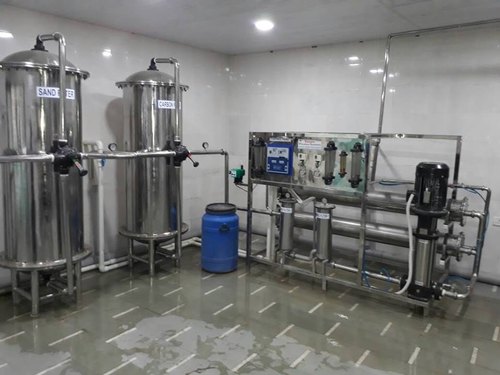

 4000 LPH Ss Ro Plant

Technical Specifications:

1. CARTRIDGE FILTER [5 Micron] : 2 No.
2. RO MEMBRANES : 80*40 ( Dow Filmtec/ Hydronautics)
3. NO. OF MEMBRANES : 4
4. MEMBRANE HOUSING : 2 ( Stainless Steel/ FRP)
5. NO. OF HOUSING : 2
6. HIGH PRESSURE PUMP [5.5HP 5-29 ] : One (Lubi/ CNP)
7. PRESSURE GAUGES [0-25 & 0-40] : One Each
8. SKID [SS] : One
9. ROF INDICATOR : Two
10. CONDUCTIVITY INDICATOR [0-200 μs] : One
11. INTERCONNECTING PIPEWORK : One Lot SS
12. LP SWITCH [SS] : One
13. FRP Vessel 32-72 : 2 (STAINLESS STEEL)
14. Tds ,meter online : 1 (Digital) Aster
15. Frame : 2 Inches Stainless Steel ( Jindal)
16. Pannel box :1 (L&T)
17. Sand Chemical : 300 kg
18. Carbon Chemical : 200 kg (Coconut )
19. Pipework and Supply : STAINLESS STEEL (Jindal)
20. 20. Multiport valve : 2 inches( Initiative/ Medas)
21. Ultra Violet System : Stainless Steel (Starlite )
22. Ozonator System: 4 Grams
23. Raw water Pump – 2 HP ( Kirlosker / Shakti )

Features –

Quality Reverse Osmosis – Nowadays everyone does promise for best SS RO PLANT service,
but rare of them are high performing.

We speculate all such issues associated with the reverse osmosis process of water
purifiers and so produce superior merchandise that are able to offer quality water filtering method.
