Dear Sir,

This has reference to your discussions with undersigned regarding your requirement of 5000`

LPH RO Plant..

We trust you will find our offer in line with your requirements. In case should you desire to

have any further confirmation/clarification please feel free to contact us.

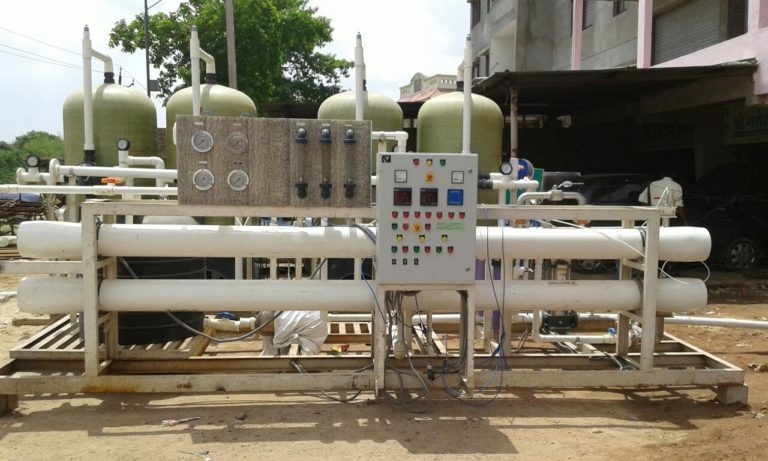

BASIS OF DESIGN AND CAPACITY OF 5000 LPH RO SYSTEM

To commission a Reverse Osmosis System to recover 5000 liters of Low TDS water per hour.

ASSUMPTIONS:

  1. No. of working days:360 days
  2. No. of working hours:10 hours
  3. Capacity utilization:95-98%
  1. INPUTS (Wastewater Quality): Total Dissolved Solids: 1000 PPM
  2. OUTPUT (Treated Water Quality): Total Dissolved Solids: 30-50 PPM













TECHNICAL SPECIFICATIONS

Flow Rate:

  1. Feed Water:10000 LPH
  2. Treated Water:5000 LPH
  3. Reject Water:5000 LPH









  1. RAW WATER PUMP:

Purpose: To feed the Dual Media Filter at pressure more than 2.0 bar, this is min. Operating pressure for filter.

Specifications:

  1. MOC: CI
  2. Type: Horizontal Centrifugal
  3. Flow Rate: 5000liters per hour
  4. Electrical: 440 V, Three phases, 50 Hz
  5. Cycle: 2900 rpm
  6. Make: CRI / CROMPTON/kirloskar
  7. Quantity: 1 No.







  1. SAND MEDIA FILTER:

Purpose: To remove the total suspended solids, dirt, iron and reduce salt density index which can foul the membranes

Specifications:

Vessel:

  1. Make: Superflow
  2. Material of construction: FRP
  3. Size: 24 x 72
  4. Testing pressure: 10 Kg/cm2
  5. Opening: Top & Bottom
  6. Quantity: 1 No.







Valve:

  1. Make: UKL
  2. Material of construction: Noryl
  3. Type: Multiport Single lever
  4. Size: 1.5 inches
  5. Maximum Flow Rate:10,000LPH
  6. Working Pressure:2-4 Bar
  7. Working: Down-Flow







Media:

Mixed bed sand media consisting of the following

  1. i) Gravel   ii) pebbles   iii) Quartz Sand iv) Anthracite
  2. Average porosity 50 micron particulate size
  3. Pipelines & Accessories:
  4. Pipe of PVC 10 Bar tested pressure





  1. ACTIVTED CARBON FILTER:

Purpose: To remove the total color, smell, odor from the water.

Specifications:

Vessel:

  1. Make: Superflow
  2. Material of construction: FRP Plastic
  3. Size: 24X72
  4. Testing Pressure: 10 Kg/cm2
  5. Opening: Top & Bottom
  6. Quantity: 1 No.











Valve:

  1. Make : UKL
  2. Material of construction : Noryl
  3. Type : Multiport single lever value
  4. Size : 1.5 inches
  5. Maximum Flow Rate : 10000LPH
  6. Working Pressure : 2-4 Bar
  7. Working : Down-Flow





Media:

Mixed bed sand media consisting of the following

  1. i) Gravel ii) pebbles iii) carbon
  2. Average porosity 50 micron particulate size Bed depth: 600mm
  3. Pipelines & Accessories:
  4. Pipe of PVC 10 Bar tested pressure
  5. Testing cock & pressure gauges at inlet-outlet of system





  1. DOSING SYSTEM:

Purpose: To dose antiscalant chemical to protect the scaling formation on RO membranes.

Specifications:

  1. MOC: PP
  2. Capacity: 5 LPH
  3. Pressure: 7 Bar
  4. Qty: 2 No.
  5. Make: E- Dose





  1. MICRON FILTER

Purpose: To remove the fine particles up to 05 microns and reduce silt density index levels to acceptable level.

Specifications: Cartridge Filter & Housing

Housing:

  1. Make: Superflow
  2. MOC of Housing: PP
  3. Length: 20’’
  4. Diameter: 4.5’’
  5. Quantity: 2 no.







Cartridge:

  1. Make: Krona
  2. Cartridge MOC: Polypropylene
  3. Length: 20’’
  4. Diameter: 4.5’’
  5. Quantity: 2 no.
  6. Micron rating: 05 micron







  1. HIGH PRESSURE PUMP:

Purpose: To feed the Reverse Osmosis Membrane at pressure more than the Osmotic Pressure taking into consideration flux rate, flow and recovery

Specifications:

  1. MOC: Stainless Steel
  2. Type: Vertical Multistage
  3. Flow Rate: 6000 liters per hour
  4. Head: 140 m
  5. Power Required: 3 Kw
  6. Electrical: 440v, Three phase, 50 hz
  7. Cycle: 2900 rpm
  8. Make:  CRI / SHAKTI
  9. Quantity: 1 No.







  1. RO MEMBRANE HOUSING:

Purpose: To pack membrane and operate at high pressure.

  1. Material of Construction:          FRP
  2. Dia: 8”
  3. Length: 120”
  4. Number of Housing: 1
  5. Dia: 8”
  6. Length :80”
  7. Number of Housing:1
  1. RO MEMBRANE





Purpose: To remove the major part of TDS into 98% by Reverse Osmosis Membranes arranged and designed to give adequate flow and recovery.

Specifications:

  1. Type: Spiral Wounded
  2. Diameter of Membrane: 8”
  3. Length of Membranes: 1 Mt.
  4. No. of Membranes: 5
  5. Recovery per Membrane: 10-15%
  6. Salt Rejection per Membrane: 98-99%
  7. Make of Membranes: CSM/ CPA / ESPA/ DOW
  8. System Recovery: 55-60







  1. RO CLEANSING SYSTEM:







Purpose: We provide a flushing system, which shall help to clean the membrane and get rid of the floulants that get deposited on the membranes.

Specifications:

  1. Flushing Time: 15 minutes
  2. Flushing Media: Treated Water/ Chemical
  3. Flushing Tank Size : 300 L
  4. Tank MOC: HDPE
  5. Flushing pump: SS PUMP –CRI / GRUNDFOS
  6. Semi automatic with two ball valves operation







  1. ELECTRICAL PANEL:

Purpose: A control panel is provided as a safety measure for the pumps & Other electrical items.

Specifications:

  1. Complete Starters, overload relays,
  2. Voltmeter, Ammeter, MCB’s, indicating lights
  3. Rocker switches for Dosers
  4. Incommers, Auto-Manual switches







  1. INSTRUMENTATION:

Purpose:

  1. Flow Meter: To measure the online flow of water Superflow
  2. TDS Meter: To measure the online TDS of water
  3. Low pressure switch: To protect RO pump from dry running
  4. High pressure switch: To protect RO pump from back pressure
  5. Pressure Gauges: For calculate pressure for each unit





Specifications:

Rota Meter:

  1. Quantity: 2 Nos.(permeate & reject line)
  2. Range: 4.0 cu.m. per hour
  3. Make:  Superflow





Pressure Switch :

  1. Range: 0-450psi
  2. Quantity: 2 No.(Low & High)
  3. Make: Superflow





Pressure Gauges:

  1. Quantity: 4 No.
  2. Range: 0-7 bar
  3. Dial Size: 4 inches
  4. Type: Bourdon
  5. Make: Superflow





  1. Plumbing & fittings:
  1. Complete Pipeline in UPVC
  2. NRV’s Pressure relief valves , wherever needed
  3. The system will be on common MS base frame
  1. WARRANTY: One Year Manufacturing Defect
  2. FRIGHT & INSURANCE: Delivery Extra as Actual
  3. ERECTION & COMMISSIONING: Free Installation
  4. EXCISE TAX: Nil
  5. SALES TAX: Extra as applicable

Terms and Conditions

The following terms and conditions shall apply to this order.

  1. Payment:
  2. (i)80% advance along with purchase order,
  3. (ii)20% against Performa invoice
  4. Validity: This offer valid for acceptance till 60 days from the date of offer.
  5. Sales Tax: As per sales tax are extra as applicable
  6. Standards: All standards used in the proposal shall be as per relevant Indian/International standards.
  7. Inspection: Any charges for inspection would be on the client’s account.
  8. Facilities at site: The buyer at his cost shall arrange the following facilities at site available.
  9. The requisite utilities, manpower and raw materials should be available at the time of installation and commissioning.
  10. All other terms and conditions shall be discussed and agreed / finalized mutually at the time of agreement.

Exclusions

The following are specifically excluded from our scope of work.

  1. All process inputs, utilities such as tube well for water, power supply and distribution system, inlet-outlet piping, etc.
  2. Fire Fighting Equipment.
  3. All civil work including building, shed foundations, roads, ramps, storage tanks, etc.
  4. Warehousing, storage and safe custody of equipment and other plant items received at site.
  5. Temporary power supply during construction and erection of plant.
  6. Effluent treatment.
  7. Our scope of supplies is limited to battery limit of equipment only as per list of equipment given herein. Any equipment/items beyond battery limit excluded from scope of work of this proposal.
  8. Any statutory approval/sanction in connection with execution of this contract, our drawing, documents in our country. However, necessary technical assistance for obtaining such approval shall be provided by us.
  9. Any other services/equipment not specifically mentioned.
  10. Detailed design of foundations and architectures fee for building, site plan/site development etc.
  11. Model of the plant.
  12. Clearing and safe transportation of machinery and equipment to project site.
  13. Insurance of plant and machinery during erection and commissioning





WARRANTEE



o   Warrantee is only applicable against any manufacturing defect.



oThe warrantee is only valid for 12 months from the date of supply

.

o Client must use the machine/plant/system supplied by us as per the design criteria.



o It shall stand void if the machine is not maintained as instructed.



o  Client shall maintain daily operational data sheet





o   It is only applicable if chemicals, resigns, membranes and other necessary parts are used as instructed.





o   The use of system beyond the capacity considered during design may affect the performance of the machine and this degradation does not give rise of any obligations on the part of the maker.





o   Back flushing of the machine or membrane is a part of routine maintenance and lack of proper maintenance can lead to performance issue.









THANK YOU FOR BEING OUR PERCIOUS CUSTOMER





For any further clarification or technical query please feel free to contact

undersigned.

                                       Hope to have your valued order on us.





                                                              Thank You









Yours sincerely,

From: Abhay Pandey







From: AQUAFILTER RO SYSTEM

Phone: 08604558300, 08604158000

Mail: aquafilter.india@gmail.com

ADDRESS: 8/636 RAJNI KHAND ,NEAR POWER HOUSE,

LUCKNOW (226012)







For any further clarification or technical query please feel free to contact

undersigned.

Hope to have your valued order on us.





                                                              Thank You
