2000 Lph Industrial Ro Plant — 2000 Lph Industrial Ro Plant Liquid Filling Machine Liquid Filling Machine —

Bottling Plant Manufacturers in India

950,000.00 920,000.00

Bottling Plant Manufacturers In India



“MANUFACTURERS OF THE LARGEST SELLING BOTTLING PLANTS IN INDIA”.
We have pleasure in introducing ourselves as a highly specialized organization engaged in the manufacture of wide range of state-of-the -art semi-automatic, fully automatic and high-speed bottling plants and machinery to cater to the liquor, pharmaceutical, brewery, beverage, natural mineral & packaged drinking water, agro-chemical, paint, edible oils, lube-oil, cosmetics, food, household products and other related miscellaneous industries..



Bottling Plant Manufacturers In India

We are leading manufacturer and exporter of mineral water bottling plant.

Offering you a complete choice of products which include Water Treatment Plant such as Mineral Water Plant, Mineral Water Treatment Plant, Drinking Water Treatment Plant, Bottling Machine, Drinking Water Plant, Mineral Water Bottling Plant and many more items.



  1. Bottle filling machine suppliers
  2. Water bottle filling plant manufacturers in up
  3. Water bottling plant suppliers
  4. Water bottle project
  5. Mineral water bottle cost
  6. Water bottle factory cost
  7. Cream Processing Plant
  8. Liquid Processing Plant
  9. bottling plant manufacturers in india

Our Video Links of Youtube- https://www.youtube.com/watch?v=vmZTQBEyuno/



mineral water, bottling plant, water treatment plant process, mineral water brands, water filtration plant, mineral water plant manufacturer.

We are primarily engaged in manufacturing Bottle Filling Plant. Bottle filling machine is in demand as it is highly used in ointment, creams filling applications. In our bottle filling plant, the bottles are passed on to the filling section. The filling section is prepared with spring loaded nozzles. As the bottles are picked they are then loaded by spring nozzles and lastly these are activated by a Drum Cam Mechanism.

Our bottles widely finds application in filling pouches and jars as well in addition to bottles of different sizes, shapes, designs and dimensions. Bottle Filling Machine is used to fill water in bottles as well as sealing it at the same time. It is also used to fill liquids in Glass, Plastic PET Bottles, and Containers and so on. These products are used for filling, rinsing and capping of bottles.

Bottle Filling Equipment
 is available in various capacities as per the specific demands of our clients at nominal prices. It is applicable in different areas such as pharmaceutical, beverages, cosmetics and allied.

Moreover, the bottles produced by us are sturdy in construction, leak-proof and durable in nature. The Bottle Filling Machine has the ability to dispatch thick, viscous and regular free flowing liquids through it



Bottle filling machine suppliers , Water bottle filling plant manufacturers in up , Water bottling plant suppliers , Water bottle project , Mineral water bottle cost , Water bottle factory cost ,Pharma Plant for Ointment Processing Plant, Cream Processing Plant, Liquid Processing Plant, Syrup Processing Plant, Oral Processing Plant, Toothpaste Processing Plant, Shampoo Processing Plant, Gels Processing Plant, Lotion Processing Plant for Pharmaceutical Plant,

Features:

  • Excellent performance
  • Durable finish standards
  • Sturdy design
  • Less maintenance
  • Bottlingplant manufacturers in india



“MANUFACTURERS OF THE LARGEST SELLING BOTTLING PLANTS IN INDIA”.
We have pleasure in introducing ourselves as a highly specialized organization engaged in the manufacture of wide range of state-of-the -art semi-automatic, fully automatic and high-speed bottling plants and machinery to cater to the liquor, pharmaceutical, brewery, beverage, natural mineral & packaged drinking water, agro-chemical, paint, edible oils, lube-oil, cosmetics, food, household products and other related miscellaneous industries..





QUOTATION FROM AQUAFILTER FOR R/O WATER BOTTLING PLANT OF 30 BPM







Corporate Office :



Aquafilter RO Systems

Phone: 08604158000, 08604558300



Mail: aquafilter.india@gmail.com



Visit Us at www.aquafilter.co.in



ADDRESS: 8/636 RAJNI KHAND NEAR POWER HOUSE

LUCKNOW (226012)



GSTIN No. 09BBLPP6257P1ZM







SUB: REQUIREMENT FOR BOTTLING PLANT & MACHINERY









  • What is a Reverse Osmosis System?





RO works by passing water through a semi-permeable membrane that separates the pure water into one stream and the salt water into another stream. The process is called “reverse osmosis” because it requires pressure to force pure water across a membrane, leaving the impurities behind. In most cases, 95% of the minerals, salts and other inorganic dissolved solids, such as metals, fluoride, sodium, and calcium are removed by RO systems





  • R.O System



We are one of the top manufacturers of Reverse Osmosis System in India. We have our own manufacturing unit where in we use all the parts as per worldwide standards. Our team consists of all highly qualified engineers having rich experience in the field of water treatment. We are loyal for better quality control. We select the machinery used for the R.O System very carefully for the best possible performance of the system which also increases the life period of the system.







FULL AUTOMATIC 2000 LPH RO PLANT WITH UV SYSTEM AND OZONATOR SYSTE







DESIGN PARAMTERS

  1. FEED FLOW : 5000 LPH
  2. PERMEATE FLOW : 2800 LPH
  3. MAXIMUM INLET TDS : 1500 ppm
  4. PERMEATE TDS : < 50 ppm
  5. RECOVERY : 95 %
  6. INLET PRESSURE : 6.0 Kgs/cm2
  7. HP MOTOR RATING : 3.0 HP [2-22 Kw]
  8. POWER : 1-Phase, 220 V AC











TECHNICAL SPECIFICATIONS



  1. CARTRIDGE FILTER [5 Micron] : 2 No.
  2. RO MEMBRANES : 80*40 ( CSM)
  3. NO. OF MEMBRANES : 2
  4. MEMBRANE HOUSING : 1 ( Stainless Steel)
  5. NO. OF HOUSING : 1
  6. HIGH PRESSURE PUMP [SS 2-22] : One (CRI)
  7. PRESSURE GAUGES [0-5 & 0-20] : One Each
  8. SKID [SS] : One
  9. ROF INDICATOR : Two
  10. CONDUCTIVITY INDICATOR [0-200 μs] : One
  11. INTERCONNECTING PIPEWORK : One Lot SS
  12. LP SWITCH [SS] : One
  13. STAINLESS STEEL Vessel 14-65: 2 (Pentair make)
  14. Tds ,meter online : 1 (Digital)
  15. Frame : 1.5 Inches Stainless Steel
  16. Pannel box :1
  17. Sand Chemical : 300 kg
  18. Carbon Chemical : 50 kg
  19. Pipework and Supply : SS
    20. Multiport valve :1.5 inches(genuine
  20. Ozonator System Jindal Make

22 . Uv System (Philpis Make)

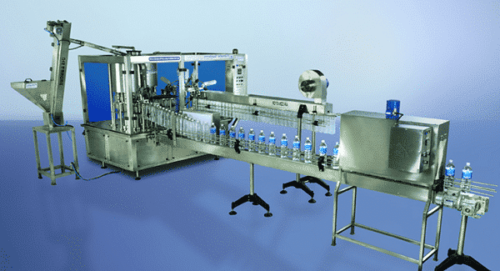

FULLY AUTOMATIC BOTTLING MACHINE OF 30 BPM





































SPECIFICATION







  • Production Capacity for 1 LTR 30 BPM
  •  Total Power 6 KW
  • Voltage Operating System 24 V,Input 415 V+N
  •  Filling Capacity 200 ml to 2,000 ml
  • Unit Dimensions ( L x D x N ) 3600 x 2000 x 3600
  • Wash Stage 1 Stage
  • Rinsing & Washing Heads 2Nos.
  • Filling Heads 4 Nos.
  • Capping Heads 1 Nos.
  • Structure Rottary
  • Bottle Placing Air Blower
  • Bottle Pick Up Neck Holding
  • Bottle Type Pet Bottles Only



Work Purpose



For Filling: 200, 500, 1000 ML, 2000 ML Pet Bottles

































DIGITAL BATCH CODING MACHINE









SPECIFICATION



  1. Line printer of 4
  2. Max speed of 304 m /min
  3. Print resolution 300*150 dpi to 600*600 dpi
  4. Per cartage printing 1.80 crores (900 times more than others)
  5. Cartage cost 7000 ( others cost 20000)
  6. Proprietary of HP TIJ 2.5 Technology
  7. Power consumption of 60 Watts
  8. High system integration and small and compact in size (US technology)















PET BLOW MOULDING MACHINE





We represent the latest technology including best quality.







Technical Specification

Specification



Unit



2000ML JAR/BOTTLE





Forming
Mould Thickness MM 155.
Clamping  stroke MM 100.
Stretching stroke MM 450.(Max)
No. Of Cavity Pcs 2Nos./01 No.
Product
Product height MM 350 Max.
Container volume ML 2000 Max.
Neck outer Diameter (Max) MM 28 up to
Product Outer Diameter(Max) MM 105
Theoretical Production Pcs/hr 1100 Up to 1Ltr
Power
Total Connected load KW 16
Heating Power KW 15
Conveyor motor & Blower KW 1
Number of lamps Pcs 6
Air
Operating Pressure Kg/cm 7
Blowing Pressure Kg/cm 30

The above specifications are subject to change without prior notice.



Total connected power required – 16Kw (21.5Hp) 3Phase 415v.









PRICE LISTING MACHINES



  1. 2000 LPH SS RO PLANT                             4,40,000



  1. AUTO BATCH CODING MACHINE            2,00,000



  1. 30 BPM AUTOMTIC BOTTLING

MACHINE                        9,50,000



  1. PET BLOW MOULDING MACHINE 9,60,000



5.ISI CERT & LAB                                                5,00,000



6.STAINLESS STEEL TANK 2000 L                70,000



7.TANSPORTATION AND

FITTING EXPANSES                                 40,000

































  1. LPH= Liter per hour



  1. Tax and Transportation in Client Scope.



  1. Extra SS Piping in Client Scope.









Techno Commercial Terms and Condition

ü Client Scope of work



o   All civil works, such as foundation of equipments, pipe supports, drain trenches, supporting structures & platforms.

o  Final grounding  of all the equipments

o  Plant area, building illumination, ventilation & earthling.

o   Supply of power, water, regenerate chemicals for commissioning.

o   Lubricant oil, grease as required after initial operation.

o   All pipe work beyond our termination points

o   Supply of raw, soft & treated water storage tanks and transfer Pumps.



o   All equipments, work and services not specifically mentioned as forming part of our offer.

















 Commercial terms:



o   The above price does not include the cost of Packing and forwarding, Erection and Commissioning and training of your Operation & Maintenance staff.

o   Insurance extra where ever applicable

o   VAT and Taxes as applicable

o   Subjected to Lucknow Jurisdiction Only



ü





TERMS OF PAYMENT



o   100% Advance along with techno-commercial order.

o   VAT TIN : 094402054887S

  • CST TIN : 09440205487S
  • GST -09BBLPP6257P1ZM





ü      Validity



o   This Quote is valid for a period of 30 Days.





ü

DELIVERY



o   Delivery shall be four week from the date of order or as agreed at the time of order.







ü







   WARRANTEE



o   Warrantee is only applicable against any manufacturing defect.



oThe warrantee is only valid for 12 months from the date of supply

.

o Client must use the machine/plant/system supplied by us as per the design criteria.



o It shall stand void if the machine is not maintained as instructed.



o  Client shall maintain daily operational data sheet





o   It is only applicable if chemicals, resigns, membranes and other necessary parts are used as instructed.





o   The use of system beyond the capacity considered during design may affect the performance of the machine and this degradation does not give rise of any obligations on the part of the maker.





o   Back flushing of the machine or membrane is a part of routine maintenance and lack of proper maintenance can lead to performance issue.









THANK YOU FOR BEING OUR PERCIOUS CUSTOMER





For any further clarification or technical query please feel free to contact

undersigned.

                                       Hope to have your valued order on us.





                                                              Thank You
