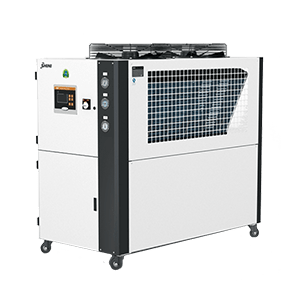

Industrial Online Water Chiller Features –
Backed by rich industry experiences, we are highly engaged in offering a premium quality range of Industrial Water Chiller.
Features:
Less maintenance
Sturdiness
Superior functionality
Use:
Used to absorb heat from process water
Other Details:
5 Ton, works at 10 degree, heavy duty machine
5
TON Online Chiller Plant
We trust you will find our offer in line with your requirements. In case should you desire to
have any further confirmation/clarification please feel free to contact us.
TECHNICAL DETAILS
Designed For Cooling Water Analysis
Total Dissolved Solids : 100 [Max]
TREATED WATER PARAMETERS [EX-RO PLANT]
TDS mg/l : < 75 ppm
pH : 5.5 – 6.5
LIMITING CONDITIONS OF THE CHILLER PLANT:
a. OXIDISING ELEMENTS : NIL
b. IRON : NIL
c. OIL & GREASE : NIL
d. WATER SOURCE : BOREWELL
e. pH : 4 – 11
f. CHLORINE : NIL
g. SDI : 3 (Max)
DESIGN PARAMTERS
1. FEED FLOW : 1000 LPH
2. PERMEATE FLOW : 1000 LPH
3. MAXIMUM INLET TDS : 1500 ppm
4. PERMEATE TDS : < 75 ppm
5. RECOVERY : 100%
6. INLET PRESSURE : 3.0 Kgs/cm2
7. POWER : 3-Phase, 440 V AC
SCOPE OF SUPPLY
1. Compressor: KIRLOSKAR Copeland 5 Tons
2. Water Flow Switch
3. Supply Pump: 1 hp( additional)
4. Flow Rate : 1000 lph
5. Flow Temp: 12 Degree Centigrade Approx
6. Temperature Meter
8. SKID [MS] : One
9. ROF INDICATOR : Two
10. CONDUCTIVITY INDICATOR [0-200 μs] : One
11. INTERCONNECTING PIPEWORK : One Lot [COPPER]
12. LP SWITCH [PVC] : One
13. pHE : alfa level high pressure
14.Input supply: 3 phase
15.Input voltage: 440 volts of phase
16. Inlet water temperature: 22 degree max
17. Outlet water temperature: 12 degree approx
18. Full machine is designed on copper
19. Max duty cycle 8 hours a day
20.
We feel proud to introduce our business domain as an acclaimed organization of Offline Water Chiller.
Other Details:
Highly efficient scroll compressors
Dual circuit configurations
Stainless steel plate evaporator
Shell and tube heat exchangers
Thermostatic expansion valves
Filter dryers
HP/LP protection
Features:
Excellent functionality
High performance
Longer service life
Water Chillers are used in many applications t cool or child fluids. These applications include, but are not limited to, manufacturing processes, comfort cooling and rental cooling systems.
The following information is provided as brief overview of water chiller features and operational characteristics.
What is Water Chiller?
A chiller is a mechanical refrigeration device, like an air conditioner, except that it cools a fluid (usually water) instead of cooling air.
When a large air conditioner is required it is sometimes more feasible to use one large chiller instead of many small air conditioners.
Chillers are also used wherever there is a need for cooling a fluid such as a chemical process or for plastic modeling.
What are the major components of a water chiller?
A chiller consists of a few major components. A compressor, an evaporator heat exchanger, a condenser heat exchanger, an expansion valve or two and some piping and controls are the basis.
Compressors are usually reciprocating, scroll, centrifugal, or rotary screw type.
The evaporator heat exchanger is usually of shell & tube constructions and is the exchanger where chilled water be produced.
The condenser heat exchanger can be either air-cooled, a coil or coils and a fan or fans, or water-cooled, another shell & tube heat exchanger cooled by cooling tower or other water.
