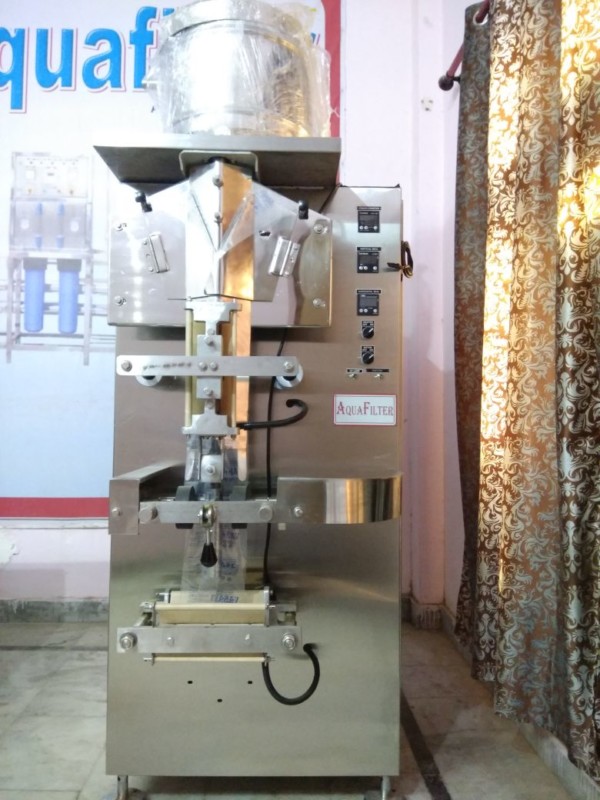

Water Pouch Packaging Machine

Description

Water Pouch Packaging Machine

Technical Specifications

1. Feeding head: Continuous gravity flow filling system.
2. Production Speed: 3200 to 3600 pouches per HOUR.
3. Machine Control system: Electrical Controls.
4. Packing range: 100ml to 500ml.
5. Film Width: 325 mm
6. Film Thickness: 60 to 110 microns.
7. Film Material: Co-Extruded Virgin films
8. Sealing System: PID controlled continuous heating system
9. Filling Accuracy : +/- 3ml.
10. Inner Core Dia. of Film Roll: 70mm.
11. Outer Dia. of the film Roll: up to 350mm.
12. Pouch Style: Center sealed Pillow type.
13. Pouch Width : 150mm/110mm
14. Pouch Length: up to 190mm.
15. Compressed Air pressure: N/A.
16. Air consumption: N/A.
17. Power Consumption: 1 KW/Hour.
18. Peak Power: 2 kW.
19. Power requirement: Single Phase, 220 V, 50Hz.
20. Pouch Counter: Provided.
21. Net Weight: 400 kgs (approx.)
22. Automatic Pouch Counter: Inbuilt Digital
23. UV sterlizer: 20 Watts Philips
24. Automatic alarm: on 100 pouches
